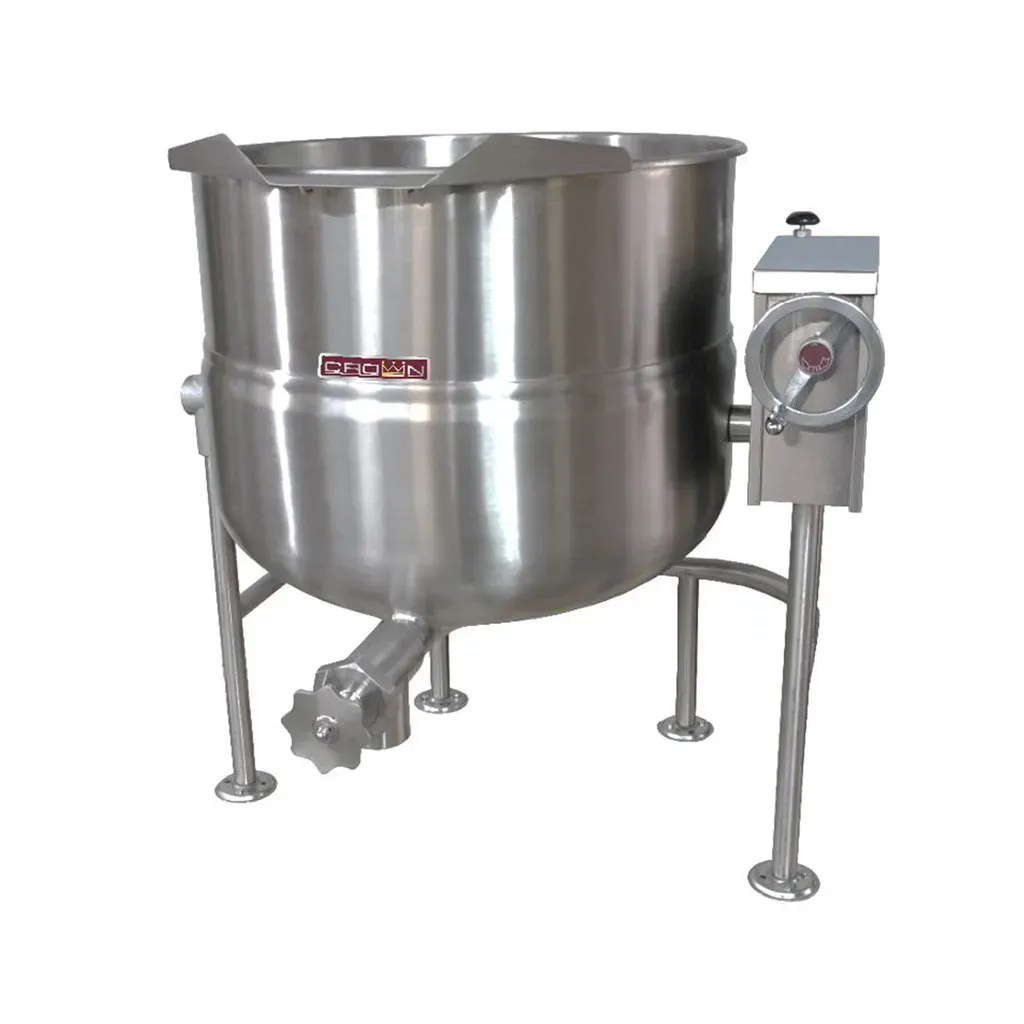

Crown Steam, DLT-20, Direct Steam Kettle, Tilting, Freestanding

SKU #: DLT-20
Description
Discover the exceptional craftsmanship of the Crown kettle line, designed with a double-walled interior that forms a steam jacket around the lower two-thirds of the kettle, ensuring optimal heat retention and efficiency. The sophisticated hemispherical bottom design enhances heat circulation, delivering superior cooking performance every time. Constructed with a robust tri-leg mounting frame—available in models 60, 80, and 100 with four sturdy legs—this kettle is built to last. Made from durable stainless steel piping, the frame not only supports the kettle and tilt console but also discreetly conceals the steam piping while housing the steam control valve and tilt mechanism. Each leg is fitted with a four-hole adjustable flanged foot, providing secure attachment to the floor for enhanced stability. Experience the convenience of a tilt mechanism that allows the kettle to tilt forward a full 90 degrees, making emptying effortless and efficient. This self-locking mechanism guarantees a positive stop action, ensuring safety and reliability during operation. Crafted from all-welded #4 finish stainless steel, type 304, this unit is engineered for excellence. The interior liner features standard 316 stainless steel, specifically chosen to withstand high-acid cooking, making it an ideal choice for a wide range of culinary applications. A faucet bracket is conveniently included, adding to the overall functionality of this impressive kettle. Upgrade your kitchen with the Crown kettle line and experience the ultimate in performance and durability.
?
Specifications
Steam Return Size
0.5 Inch
Steam Inlet Size
0.75 Inch
Number of Steam Kettles
1
Kettle Capacity
20 Gallon
Area (in)
34.75 in X 34.75 in X 37 in
Steam Inlet Pressure PSIG
5 Pound per square inch
Safety and Compliance
cCSAus, NSF
Tilt Mechanism
Crank
Steamer Type
Direct Steam
Power Type
direct steam
Design
Freestanding, Indoor Only
Product Type
kettle
Base Configuration
Legs
Material
stainless steel
Steam Kettle Type
Standard
Style
tilting
Features
with 2/3 jacketed option
Additional Information
