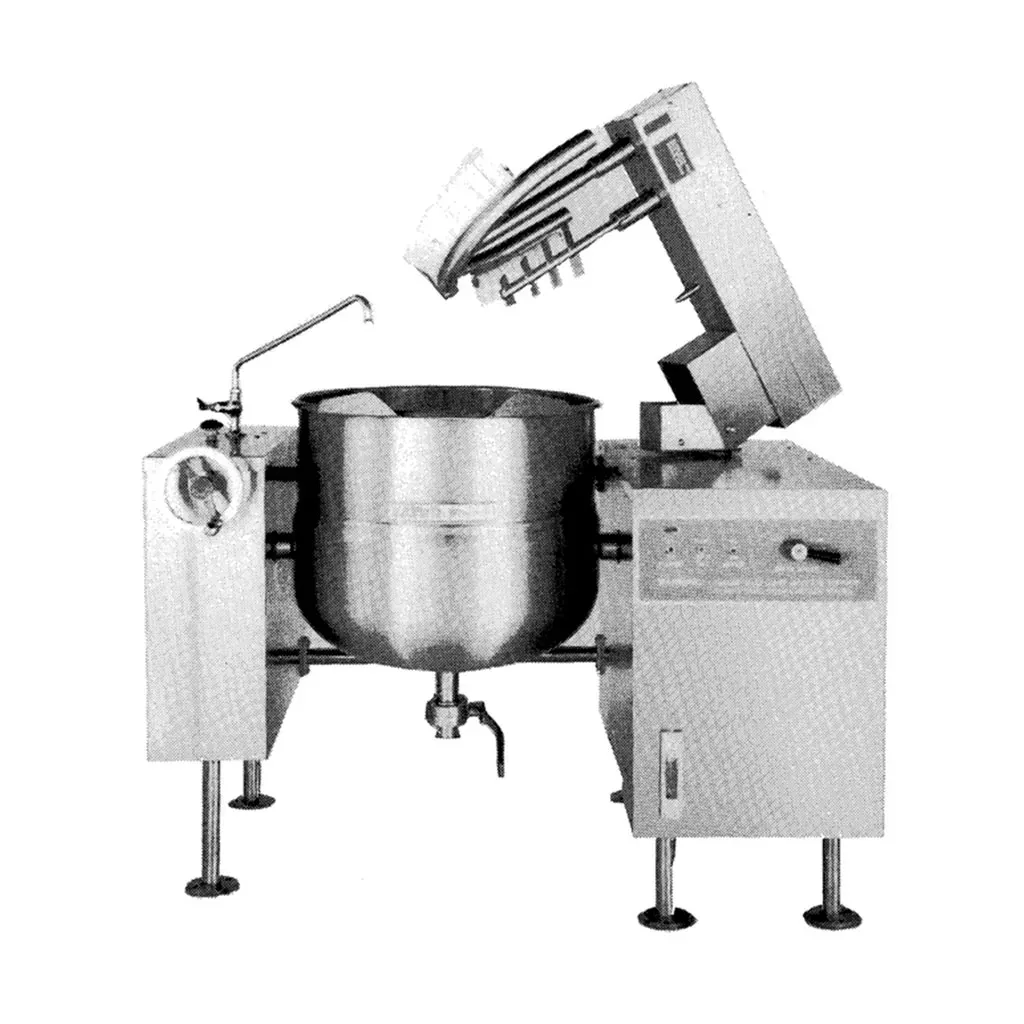

Crown Steam, DLTM-100, Direct Steam Mixer Kettle, 208V, Freestanding

SKU #: DLTM-100
Description
The DLTM-40, DLTM-60, DLTM-80, and DLTM-100 kettles, each meticulously crafted from premium stainless steel type 304 with a sleek satin finish. These exceptional kettles are engineered with a double-wall interior that forms a highly effective steam jacket, enhancing heat distribution across the lower two-thirds of the kettle. To ensure durability and performance with high-acid content products, we have integrated a robust 316 stainless steel liner. Designed for maximum efficiency, the hemispherical bottom of the kettle optimizes heat transfer, ensuring your products are heated evenly and thoroughly. The sturdy tubular legs, made from high-quality stainless steel pipe, feature four-hole adjustable flanged feet that securely anchor the kettle to the floor, providing stability and support during operation. Our innovative sealed stainless steel tilt mechanism allows the kettle to tilt forward a full 90 degrees for effortless and complete emptying. This self-locking mechanism guarantees precise stop action, giving you confidence in your operations. The powerful mixer, equipped with variable speed capabilities, runs on a 5 hp electric motor that drives a hydraulic pump, ensuring reliable performance. With a primary stainless steel scraper/agitator and a secondary high-speed mixer, both designed for quick and tool-free removal, cleaning becomes a hassle-free process. The user-friendly console features the main power switch, mixer lift switch, and variable speed control, putting you in complete command of your mixing process. The bridge, constructed from heavy-duty 10-gauge stainless steel, houses two powerful hydraulic motors to efficiently drive the agitators. With the ability to tilt and swing 140 degrees out of the way, this design facilitates seamless kettle tilting and cleaning, maximizing productivity. Elevate your culinary operations with the DLTM kettles—engineered for excellence, designed for efficiency, and built to last.
?
Specifications
Steam Return Size
0.5 Inch
Steam Inlet Size
0.75 Inch
Number of Steam Kettles
1
Kettle Capacity
100 Gallon
Voltage
208V
Phase
3PH
Steam Inlet Pressure PSIG
5 Pound per square inch
Area (in)
70 in X 63 in X 85 in
Safety and Compliance
cCSAus, NSF
Steamer Type
Direct Steam
Power Type
Direct Steam
Design
Freestanding, Indoor Only
Product Type
kettle
Base Configuration
Legs
Steam Kettle Type
Mixer
Tilt Mechanism
Power
Material
stainless steel
Features
with 2/3 jacketed option
