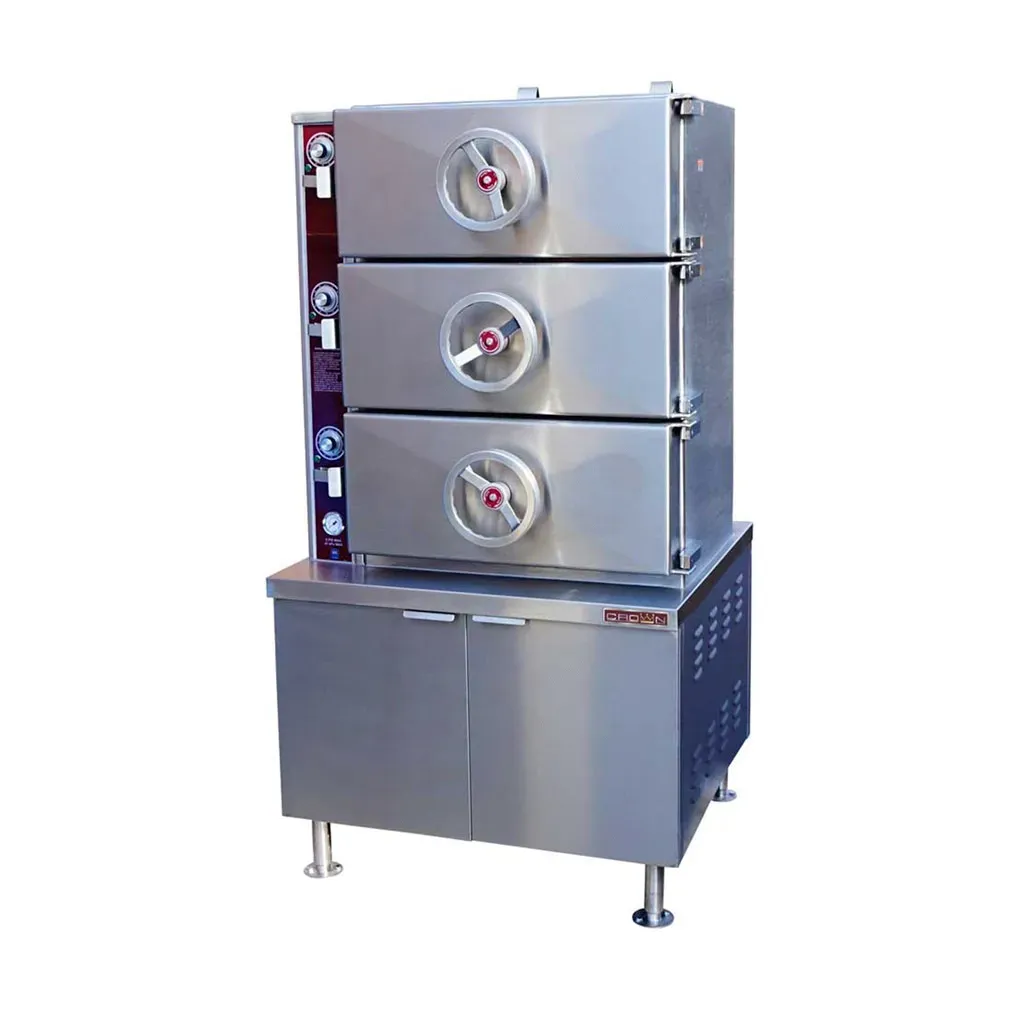

Crown Steam, SCDA-3, Steam Coil 3 Compartment Cooker, 115V, Direct Steam, Boiler Based

SKU #: SCDA-3
Description
The SCDA-2 and SCDA-3 are pressure compartment cookers featuring a top compartment with a selectable switch to operate in a pressureless free venting mode. They include a regenerative steam coil boiler, and are c-CSA-us, NSF Certified, ASME code stamped, and National Board registered. Constructed from all-welded type 304 stainless steel with a #4 finish, the doors feature an all-welded one-piece stainless steel outer shell, a removable aluminum inner liner, a full perimeter gasket seal, and a wheel-and-screw closing mechanism. The doors open a full 180° and latch upon closing. Each compartment has a clear opening of 10-1/4” x 26-3/8” (260 mm x 670 mm) and operates at a maximum pressure of 6 psi (41 kPa). Universal pan supports are provided, with optional sliding shelves supporting two full-size (1/1 gastronorm) pans. The control housing is made of #4 finish stainless steel with a full-access removable panel. Each compartment is independently controlled by an automatic timer with visible and audible signals. At the end of the cooking cycle, the controls automatically shut off steam, vent pressure, and drain condensate, with a continuous audible signal until manually turned off. The cooker is mounted on a cabinet base with a full perimeter angle frame, reinforced counter, regenerative steam coil boiler with controls, hinged doors, and 6” (152 mm) stainless steel legs with 4 adjustable flanged feet. The exterior is #4 finish stainless steel with removable side panels for easy access to the boiler.
?
Specifications
Steam Return Size
0.5 Inch
Steam Inlet Size
0.75 Inch
Voltage
115V
Number of Pans
12
Phase
1PH
Number of Cooking Chambers
2
Steam Inlet Pressure PSIG
25 Pound per square inch
Compartments
3 compartments
Area (in)
41 in X 33.88 in X 68 in
Safety and Compliance
ASME-U, cCSAus, cNSFus
Design
Boiler Based, Freestanding, Indoor Only
Product Type
compartment cooker
Power Type
Direct Steam
Steamer Type
Do All Compartment Cooker, Steam Coil
Control Type
Manual
Material
stainless steel
Features
with automatic drain method, with automatic fill method
