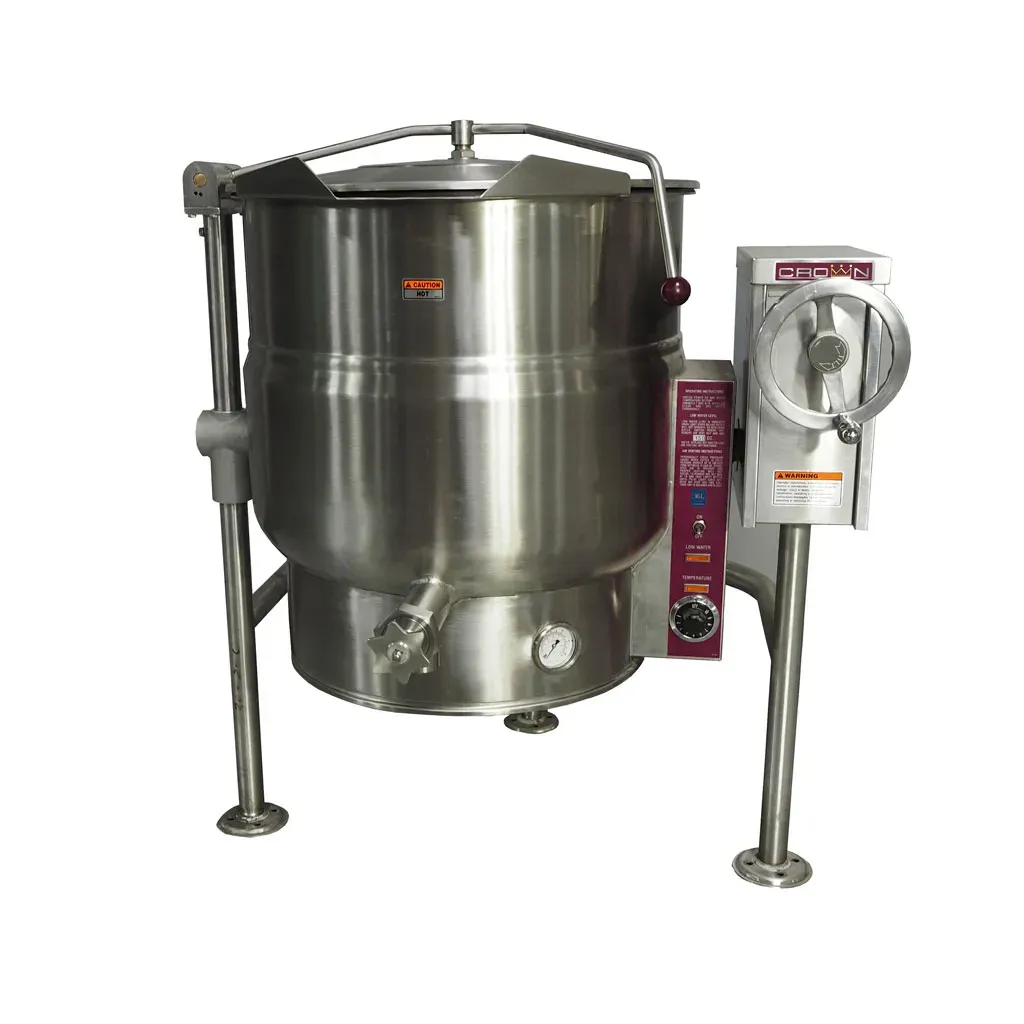

Crown Steam, ELT-80, Electric Steam Kettle Tilt Tri-Leg, 208V, Tilting, Freestanding

SKU #: ELT-80
Description
Discover the unmatched efficiency and performance of the Crown kettle line. With its innovative double-wall interior design, which creates a steam jacket around the lower two-thirds of the kettle, this system ensures optimal heat distribution. The factory-sealed jacket contains distilled water, providing reliable and consistent heating for all of your cooking needs. The hemispherical bottom enhances heat circulation, allowing for uniform cooking results every time. Constructed from drip-proof stainless steel, the sturdy console is supported by a fully welded frame made from 1-5/8” (41 mm) diameter stainless steel pipe legs, complete with adjustable flanged feet for secure floor attachment. Experience unrivaled convenience with a kettle that tilts forward a full 90°, thanks to a trunnion and tilt mechanism that ensures complete emptying. The self-locking tilt mechanism guarantees stability while in use. Durability and quality are paramount, as the entire unit features all welded #4 finish stainless steel, type 304, with a type 316 stainless steel interior liner that excels in high-acid cooking applications. The integrally mounted controls—complete with a power switch, thermostat, pilot light, low water indicator, vacuum/pressure gauge, safety relief valve, and low water shut-off—make operation straightforward and efficient. Furthermore, the standard removable heating elements provide flexibility and ease of maintenance. Operating within a temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345 kPa), this kettle is designed to handle the demands of any commercial kitchen. Don’t miss out on the opportunity to enhance your cooking capabilities with the Crown kettle line!
?
Specifications
Number of Steam Kettles
1
Wattage
18000
Phase
1PH
Voltage
208V
Depth
44"
Height
45"
Area (in)
48 in X 44 in X 45 in
Width
48"
Kettle Capacity
80 Gallon
Amps
86.5
Safety and Compliance
ASME-U, cCSAus, NSF
Tilt Mechanism
Crank
Power Type
electric
Design
Freestanding, Indoor Only
Steamer Type
Generator
Product Type
kettle
Base Configuration
Legs
Control Type
Manual
Material
stainless steel
Steam Kettle Type
Standard
Style
tilting
Features
with 2/3 jacketed option
